TRCe
Total Recovery with EC Motor for All Climates

Energy Recovery Ventilators

TRCe Model

Model Features

  • EC Motor
  • MERV-8 filters
  • Transformer/relay package allowing simple on/off control
  • AHRI Certified
  • cETLus Listed
  • Ecowatt®

AHRI cETLus   Ecowatt

Model Overview

With S&P's TRCe (total recovery for commercial applications) Series with EC Motor for all climates, stale room air is exhausted, and the fresh outdoor air is brought back into the building. With this line of ERVs (Energy Recovery Ventilators) these two air streams are directed through a highly developed "air-to-air" energy exchange core. The air streams are physically separated by many layers of "plates" so there is no mixing or contamination of the fresh air. The plates are made of an engineered "resin" material that simultaneously transfers heat by conduction and humidity by attracting and moving water vapor from one air stream to the other.

S&P's TRCe's moderate extremes in both temperature and humidity, creating a comfortable indoor environment. The unique moisture transfer capability of the S&P core also eliminates condensation and frost build up in most applications. Unlike other ERVs on the market no mechanical or electrical defrost systems are needed, which means higher heat recovery efficiencies, easier installation and more reliable operation.

With an included EC motor and HVI certification, these Total Recovery models meet all of the requirements for the Ecowatt® standard for energy-efficient products. The Ecowatt® standard is used to classify energy-efficient products that use Electronically Commutated (EC) or Direct Current (DC) motors that have certified performance from AMCA or HVI.

10-year core warranty, 2-year unit warranty

Airflow Performance for TRCe500

Airflow CFM ESP in H2O Watts
229 0.07 75
321 0.16 171
395 0.25 284
458 0.34 410
491 0.40 506
209 0.20 80
289 0.43 188
350 0.67 315
396 0.90 447
416 1.00 515

Airflow Performance for TRCe800(V)

Airflow CFM ESP in H2O Watts
324 0.04 86
446 0.07 150
647 0.15 300
794 0.24 564
929 0.33 827
1019 0.41 1042
300 0.11 91
406 0.20 160
579 0.42 359
713 0.65 599
828 0.89 871
883 1.00 1075

Airflow Performance for TRCe1200

Airflow CFM ESP in H2O Watts
630 0.07 189
807 0.12 314
1014 0.20 502
1222 0.28 735
1430 0.39 1015
513 0.20 185
656 0.33 310
825 0.52 498
994 0.74 735
1163 1.01 1017

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Part Description
45EVT10 10-inch Round Flange Kit (2 in Kit) for TRCe500
Commercial MERV Filter ERV Filters for TRC500 thru TRC1600 Submittal
BD10 10-inch Gravity Backdraft Damper for TRCe500
BD12 12-inch Gravity Backdraft Damper for TRCe800
FA10-G 10-inch Galvanized Metal Wall Cap for TRCe500
FA10-P 10-inch Paintable Metal Wall Cap for TRCe500
FA12-G 12-inch Galvanized Metal Wall Cap for TRCe800
FA12-P 12-inch Paintable Metal Wall Cap for TRCe800
VW12X12-G 12x12" louver to 10" round galvanized metal wall cap for TRC500

Ecowatt® Accessories

SC-TRCe Remote Potentiometer Speed Control for TRCe models
Total Recovery Ventilator Brochure
Ecowatt® Brochure
Submittal (TRCe500)
Submittal (TRCe800)
Submittal (TRCe800V)
Submittal (TRCe1200)
IOM
Description

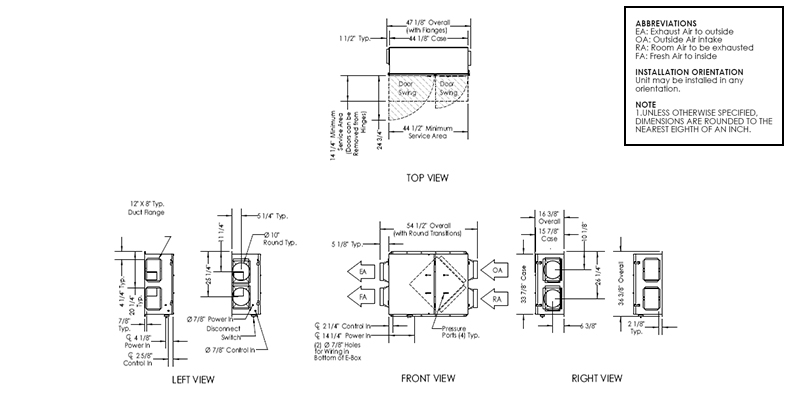

TRCe500

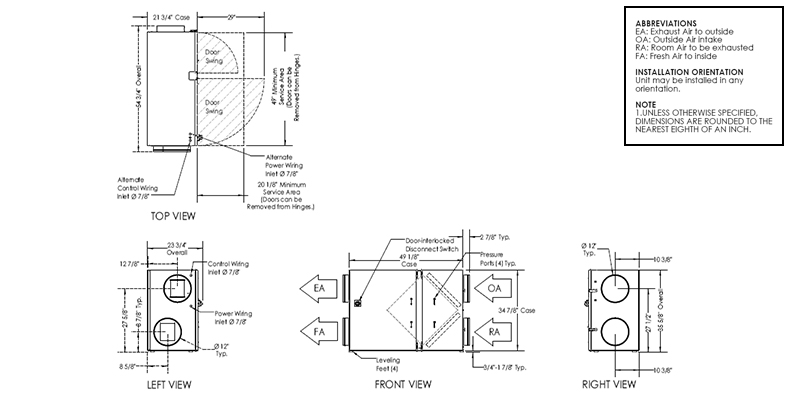

TRCe800

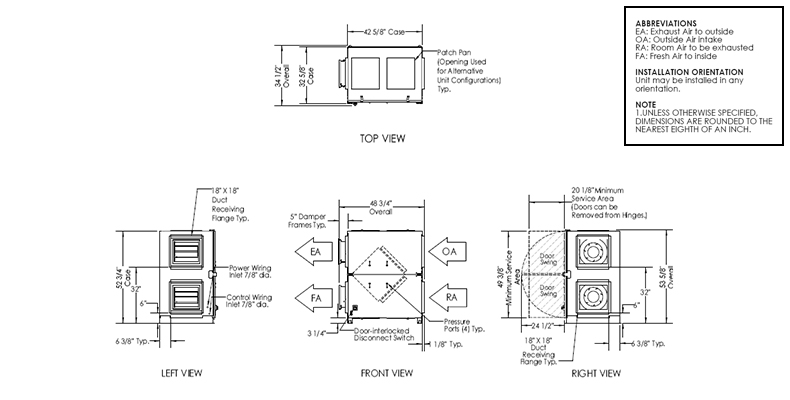

TRCe1200
  • General/Clean Air
  • Contaminated Air
  • Energy Recovery
