reFresh Value

reFresh Series

Model Features

Low profile, galvanized, 26 ga., housing
Overall Dimensions (without control): RFV8 - 8-1/2 x 9 x 19"
Factory installed ES24V Control
6" round duct connectors
AC motor, 120V, 60 Hz
Test port for easy airflow measurement
Integral backdraft damper
Integral mounting tabs allow mounting in any orientation
6' power cord standard
cULus 507 Listed

Model Overview

The reFresh Value Series introduces fresh air from the outside into the residence. The value model is specifically engineered to meet building and energy codes that call for ASHRAE 62.2 (2010), IRC (2012/2015), and IMC (2012/2015) requirements.

These units feature a high quality, efficient S&P backward inclined motorized AC impeller, factory installed ES24V speed control, and 6' power cord. The value units heavy-duty galvanized construction and integral metal duct collars are designed for easy installation and maintenance, giving the homeowner the best IAQ solution in an all-in-one unit.

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

5-year warranty

Specifications

Model	Duct Dia.	Speed (RPM)	Voltage / Frequency	Current (Amps) at High Speed @ .2" SP	Max SP	Avg. Ship Weight (lbs)
RFV8-120AC-ES24V	6"	2,560	120V / 60Hz	0.62	1.3	15

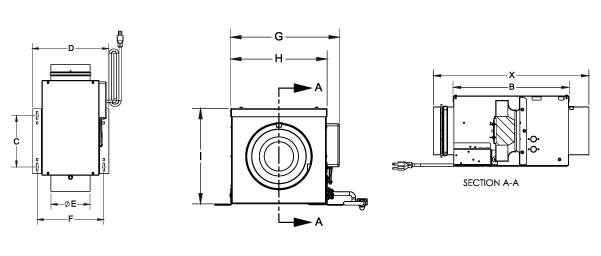

Dimensions

Size	X	B	C	D	ø E	F	G	H	I
08	19.08	14.25	7.75	11.50	5.88	10	9.71	8.63	8.55

Accessories

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

DH6-120V	In-line Duct Heater	Submittal	IOM
ES24V	Envirosense Ventilation Control 24V	Submittal	IOM
MD	Motorized Backdraft Damper	Submittal

Literature and Documentation

reFresh Brochure
Flyer
Outside Air Solutions Brochure
Outside Air Solutions Flyer
RFV8 Flyer
Submittal
IOM

Applications

General / Clean Air
Outdoor Air Solution
