reFresh: S&P's New Outside Air Solution
Posted on
S&P Canada announces the launch of our newest dedicated supply fans and more! The reFresh series is specifically engineered to meet today's outside air codes and the ASHRAE 62.2 Whole-House Ventilation Requirement.
These units feature high quality, efficient AC or EC S&P backward inclined motorized impellers. Two models sizes are available, the RF8 low profile models and the RF10 full size models. Both sizes feature heavy-duty galvanized and insulated housings, internally mounted speed controls, integral metal duct collars for 6" round duct, test ports for easy airflow measurement, filter slots, and certified performance with and without MERV13 filters.

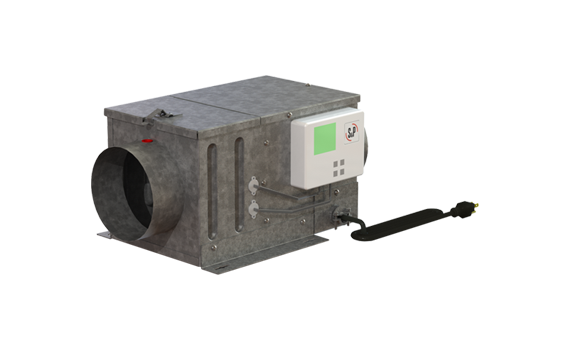

RF8 - Low Profile Model Features
- Low profile, galvanized, 26 ga., insulated housing
- 6" round duct connectors with test port for easy air flow measurement
- 2" wide filter slot for optional 8 x 8 x 2" filters
- Integral mounting tabs allow mounting in any orientation
- Backward inclined wheel
- Speed controllable, AC or EC motor, 115/120V, 60 Hz
- Internally mounted speed control to set required intake with high, medium, and low set points
- 6' power cord
- EC motor models are ENERGY STAR qualified
- HVI Certified performance with and without optional MERV13 Filters
- cULus 705 Listed

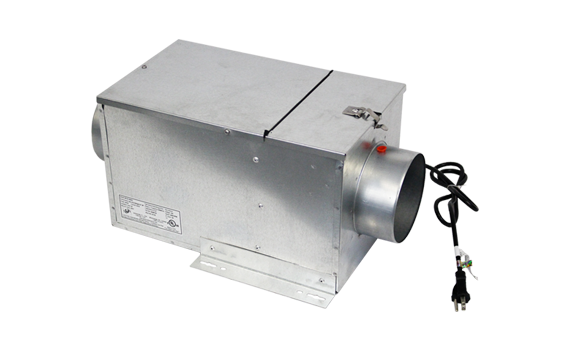

RF10 - Standard Size Model Features
- Galvanized, 26 ga., insulated housing
- 6" round duct connectors with test port for easy air flow measurement
- Integral backdraft damper
- 2" wide filter slot for optional 10 x 10 x 2" filters
- Integral mounting tabs allow mounting in any orientation
- Backward inclined wheel
- Speed controllable, AC or EC motor, 115/120V, 60 Hz
- Internally mounted speed control to set required intake with high, medium, and low set points
- Models with and without 6' power cord
- EC motor models are ENERGY STAR qualified
- AMCA Air and Sound licensed performance with and without optional MERV13 filters
- HVI Certified performance with and without optional MERV13 filters
- cULus 705 Listed
- Models with UL 2043 rating
AND MORE...
To coincide with the reFresh series launch we are also launching accessories and controls specifically outside air applications:
ES24V - Envirosense Ventilation Control
This S&P exclusive control, can be used with our TD-MIXVENT, TD-SILENT, PV-POWERVENT, or TR-ERVs; when paired with the reFresh supply fans the ES24V provides fully controllable fresh air into a residence. With three modes (Off, On, and Eco-Mode) the ES24V ensures compliance with today's outside air codes. To find out more about the ES24V Click Here.
MD6 - Motorized Damper
This normally closed, power open, 24V motorized damper for 6" round duct can be used to bring fresh air in through a forced-air systems. To find out more about the MD6 Click Here.
DH6-120V - Inline Duct Heater
This 120V inline duct heater for 6" round duct is designed for both horizontal and vertical mounting. The DH6-120V has a heating element which converts electricity into heat through Resistance - the process by which the passage of an electric current thru a conductor (wire) releases heat. The resulting heat is transferred by convention providing there is a temperature difference. To find out more about the DH6-120V Click Here.
Whole-House Ventilation Calculator
Need help calculating the ASHRAE 62.2 minimum CFM required for whole-house ventilation? Use the new Whole-House Ventilation Calculator on our website to help. This calculator allows you to input the square footage and number of bedrooms, then calculates the minimum CFM required based on the ASHRAE 62.2 (2013) formula:
[minimum required CFM = 0.03A + 7.5(# bedrooms + 1)]
