SWF-SIDEWALL Sidewall Centrifugal Fan

Wall Mounted Fan Series

SWF-SIDEWALL

Model Features

  • Exhaust air up to 416 CFM with static pressure capabilities to 1-1/2" w.g.
  • Galvanized steel casing with black backed enamel coating
  • Pre-wired junction box
  • Ideal for applications where space is limited
  • Non-overloading backward inclined wheel for efficiency at higher static pressures
  • cULus Listed

cULus Listed HVI

Model Overview

The Sidewall Fan Series utilizes the same powerful high static motor found in the popular PV Series fans, yet the SWF series is encased in an exterior mounted housing. The outdoor rated exterior housing provides easy access from the outside of a building or dwelling. This makes the SWF a great solution for installations where attic space or easy indoor access is difficult and not suitable for traditional PV style in-line mounting. The SWF series of direct drive centrifugal ventilation fans consists of five model sizes ranging from 4-8". All models are designed for direct connection in-line with standard diameter round ducting. Airflow performance values range from 119 to 416 CFM.

All SWF series models incorporate a powerful external rotor motor that has been factory matched to a non-overloading backward curved centrifugal fan wheel.

This powerful combination enables the SWF to deliver exceptional airflow performances against high static pressure typically found in ducted ventilation systems. All motors within the SWF series are speed controllable using voltage or frequency control regulators.

The SWF series has been designed for easy through the wall installation. The totally enclosed motor design allows for the SWF to operate in high moisture, lint and dust laden air.

The SWF series features a corrosion resistant galvanized steel casing with a baked enamel coating that can be painted to match the exterior wall. The unit also includes a built-in backdraft damper and an extended opening exhaust grille. The larger grille allows for the easy exhaust of "dirty" or lint laden air while the spring-loaded backdraft damper helps prevent insect and other animals from entering duct work.

5-year fan housing and motor warranty

Model RPM Volts Frequency Current 0.25" 0.375" 0.5" 0.75" 1.0" 1.25" 1.5"
SWF-100 2200 120 60 HZ 0.52 A 92 78 64 44 26 - -
SWF-100X 2600 120 60 HZ 0.8 A 152 142 118 90 66 46 28
SWF-150 2600 120 60 HZ 0.8 A 197 181 168 122 81 60 27
SWF-150X 2800 120 60 HZ 1.0 A 310 287 266 230 192 147 96
SWF-200 2800 120 60 HZ 1.0 A 368 341 324 287 233 184 132

HVI CERTIFIED RATINGS

Model CFM @ 0.1" CFM @ 0.2" WATTS
SWF-100 100 88 57.4
SWF-100X 130 121 71.5
SWF-150 220 201 78.5
SWF-150X 290 276 111
SWF-200 400 379 130

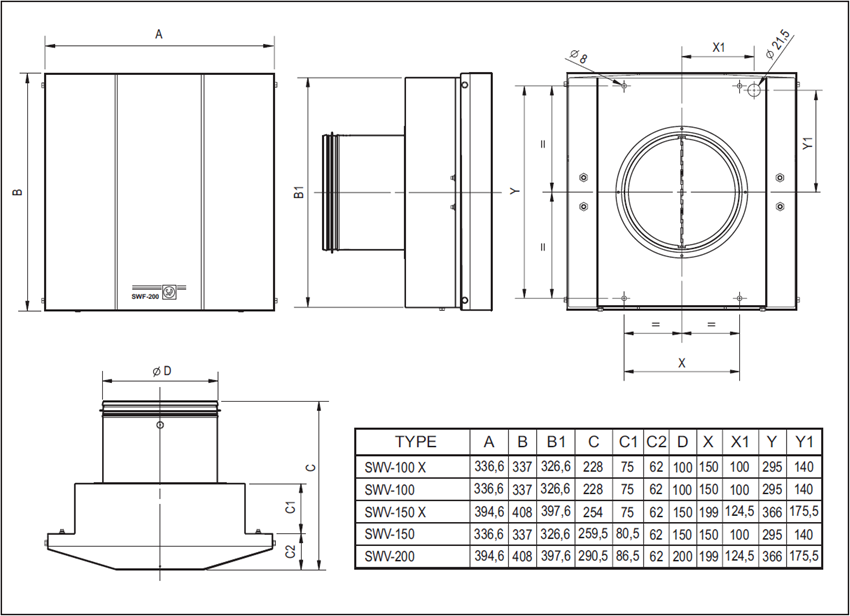

Dimensional Drawing SWF-SIDEWALL
Model A A1 B B1 C C1 C2 D X X1 Y Y1
100 13-1/4" 9-11/16" 13-1/4" 12-7/8" 9" 3" 2-7/16" 4" 5-29/32" 3-15/16" 11-5/8" 5-1/2"
100X 13-1/4" 9-11/16" 13-1/4" 12-7/8" 9" 3" 2-7/16" 4" 5-29/32" 3-15/16" 11-5/8" 5-1/2"
150 13-1/4" 9-11/16" 13-1/4" 12-7/8" 10-1/4" 3-3/16" 2-7/16" 6" 5-29/32" 3-15/16" 11-5/8" 5-1/2"
150x 15-9/16" 11-9/16" 16-1/16" 15-11/16" 10" 3" 2-7/16" 6" 7-27/32" 4-29/32" 14-13/32" 6-29/32"
200 15-9/16" 11-9/16" 16-1/16" 15-11/16" 11-7/16" 3-7/16" 2-7/16" 8" 7-27/32" 4-29/32" 14-13/32" 6-29/32"

Note: Additional accessories are available for certain products. Contact your S&P Representative for more information about these accessories.

Standard Accessories

BOC Interior Air Valve Metal Submittal
BOR Interior Air Valve Plastic Submittal
EPBT-60 Electronic Push Button Timer Submittal
FB Filter Box Submittal
FT247 Programmable Fan Timer Submittal
FT622 ASHRAE 62.2 Bath Fan Ventilation Control Submittal
GRA Aluminum Exterior Fixed Grille Submittal
ID Flexible Round Duct
LT-100 Lint Trap Submittal
MAR Connections for Rectangular Duct Submittal
MBR Connection Flange
MCA Backdraft Damper Submittal
MD Motorized Backdraft Damper Submittal
MFL Filter Box Submittal
MRJ Grille Submittal
PER-CN High Pressure Aluminum Louver Shutter Submittal
PER-W Plastic Louver Shutter Submittal
PG Premium Grille/Collar Submittal
SC Speed Control Submittal
SCS5 Speed Control Slide Type Submittal
SIL Acoustic Attenuators Submittal
SPT-100X Pressure Sensor Submittal
SR Reducer Submittal
SY Y Sheet Metal Adapter Submittal
